Profile Types

4 Profile Types for Every Application

C-shaped (PS)

C-section load-bearing profile. The primary vertical framing element for walls and partitions.

Vertical wall studs

Σ-shaped (PSu)

Σ-section profile with stiffening ribs for higher load capacity.

Studs at openings, columns, high-load zones

U-shaped (PN)

U-section profile. Top and bottom track for framed structures.

Horizontal framing, connection to slabs

Ω-shaped (PSh)

Ω-section profile for sub-cladding systems and ventilated facades.

Ventilated facades, wall cladding substrates

Atyrau, Gurievsnab industrial zone, building 73

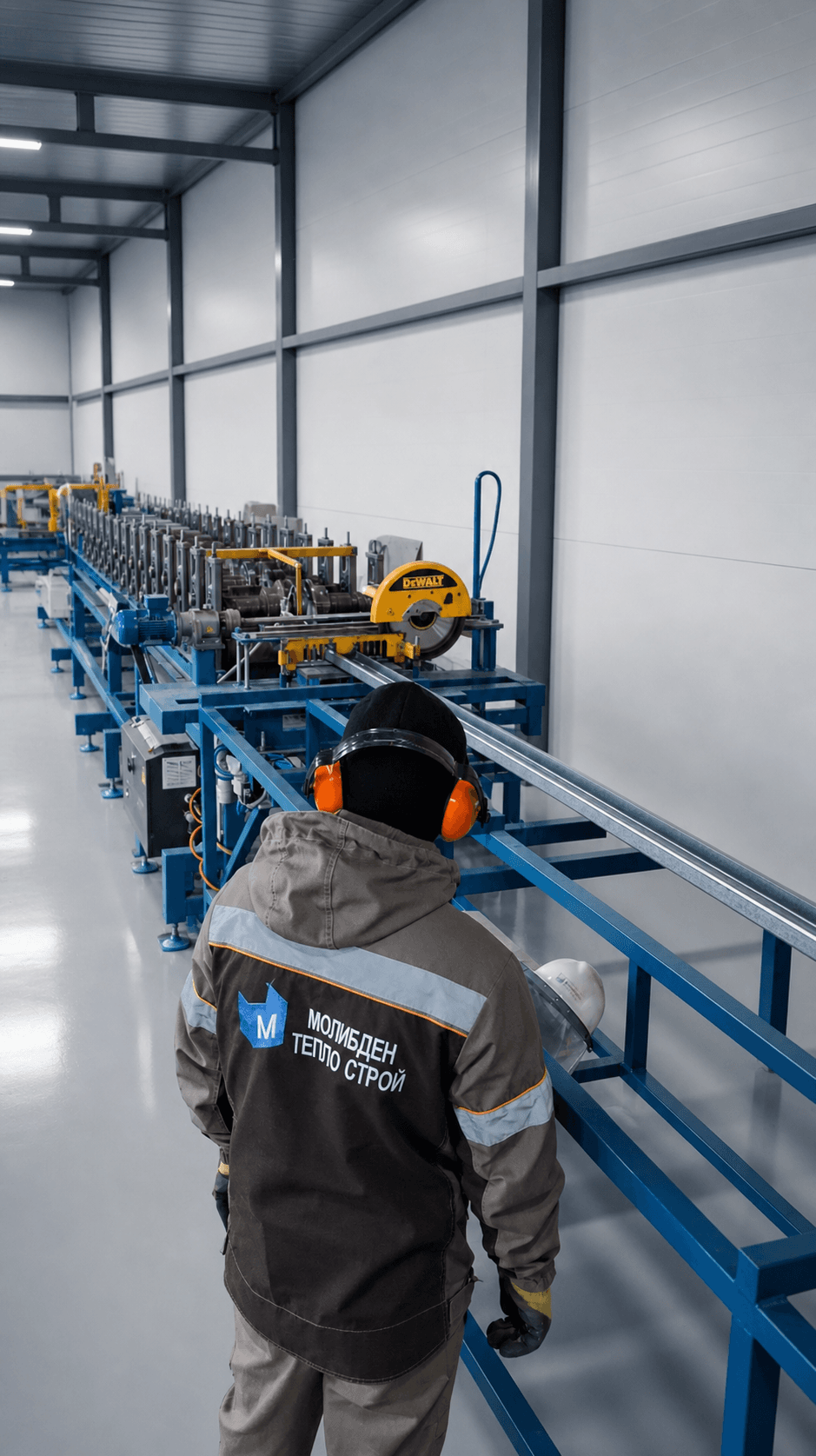

Our own LSTK profile manufacturing plant

In-house Production

We make it ourselves — not resellers

Our plant has been operating since 2010. Full-cycle production line: from steel coil to finished hot-dip galvanized profile with precise dimensional tolerances. Products are certified to RK state standards.

700t/mo

Production capacity

15+years

In operation since 2010

S245steel

Hot-dip galvanized

GOSTKZ

Conformity certificate

Get Price List

Technical Specifications

LSTK Profile Size Range

S245 steel, hot-dip galvanized. Standard lengths: 3 m and 6 m.

	Profile	Width, mm	Thickness, mm	Weight, kg/m
C-shaped (PS)
	С-100	100	0.8	1.19
	С-100	100	1.0	1.49
	С-100	100	1.2	1.79
	С-100	100	1.5	2.24
	С-100	100	2.0	2.98
	С-150	150	0.8	1.51
	С-150	150	1.0	1.88
	С-150	150	1.2	2.26
	С-150	150	1.5	2.83
	С-150	150	2.0	3.77
	С-200	200	0.8	1.82
	С-200	200	1.0	2.28
	С-200	200	1.2	2.73
	С-200	200	1.5	3.41
	С-200	200	2.0	4.55
	С-250	250	0.8	2.14
	С-250	250	1.0	2.67
	С-250	250	1.2	3.20
	С-250	250	1.5	4.00
	С-250	250	2.0	5.34
	С-300	300	0.8	2.45
	С-300	300	1.0	3.06
	С-300	300	1.2	3.67
	С-300	300	1.5	4.59
	С-300	300	2.0	6.12
Σ-shaped (PSu)
	Σ-150	150	0.8	1.51
	Σ-150	150	1.0	2.10
	Σ-150	150	1.2	2.52
	Σ-150	150	1.5	3.16
	Σ-150	150	2.0	4.21
	Σ-200	200	0.8	2.00
	Σ-200	200	1.0	2.50
	Σ-200	200	1.2	3.00
	Σ-200	200	1.5	3.74
	Σ-200	200	2.0	4.99
	Σ-250	250	0.8	2.31
	Σ-250	250	1.0	2.89
	Σ-250	250	1.2	3.47
	Σ-250	250	1.5	4.33
	Σ-250	250	2.0	5.78
	Σ-300	300	0.8	2.63
	Σ-300	300	1.0	3.28
	Σ-300	300	1.2	3.94
	Σ-300	300	1.5	4.92
	Σ-300	300	2.0	6.56
U-shaped (PN)
	П-100	100	0.8	1.10
	П-100	100	1.0	1.37
	П-100	100	1.2	1.65
	П-100	100	1.5	2.06
	П-100	100	2.0	2.75
	П-150	150	0.8	1.41
	П-150	150	1.0	1.77
	П-150	150	1.2	2.12
	П-150	150	1.5	2.65
	П-150	150	2.0	3.53
	П-200	200	0.8	1.73
	П-200	200	1.0	2.16
	П-200	200	1.2	2.59
	П-200	200	1.5	3.24
	П-200	200	2.0	4.32
	П-250	250	0.8	2.04
	П-250	250	1.0	2.55
	П-250	250	1.2	3.06
	П-250	250	1.5	3.83
	П-250	250	2.0	5.10
	П-300	300	0.8	2.36
	П-300	300	1.0	2.94
	П-300	300	1.2	3.53
	П-300	300	1.5	4.42
	П-300	300	2.0	5.89
Ω-shaped (PSh)
	Ω	100	0.6	0.82
	Ω	100	0.8	1.09
	Ω	100	1.0	1.37
	Ω	100	1.2	1.64
	Ω	100	1.5	2.05
	Ω	100	2.0	2.73
